220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement

220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement
220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement
220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement
220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement
220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement
220V 230V 3NO 25A 3P modular household small AC contactor hotel building Din rail Household ac contactor in Contactors from Home Improvement

Product Specification

Brand Name: tarautom

Number of Pole: 3

is_customized: Yes

Phase: 3

Model Number: WTC-25A 3P 3NO

Electricity Type: AC

Main Circuit Rating Current: 25A

Main Circuit Rating Voltage: 230V

Description:

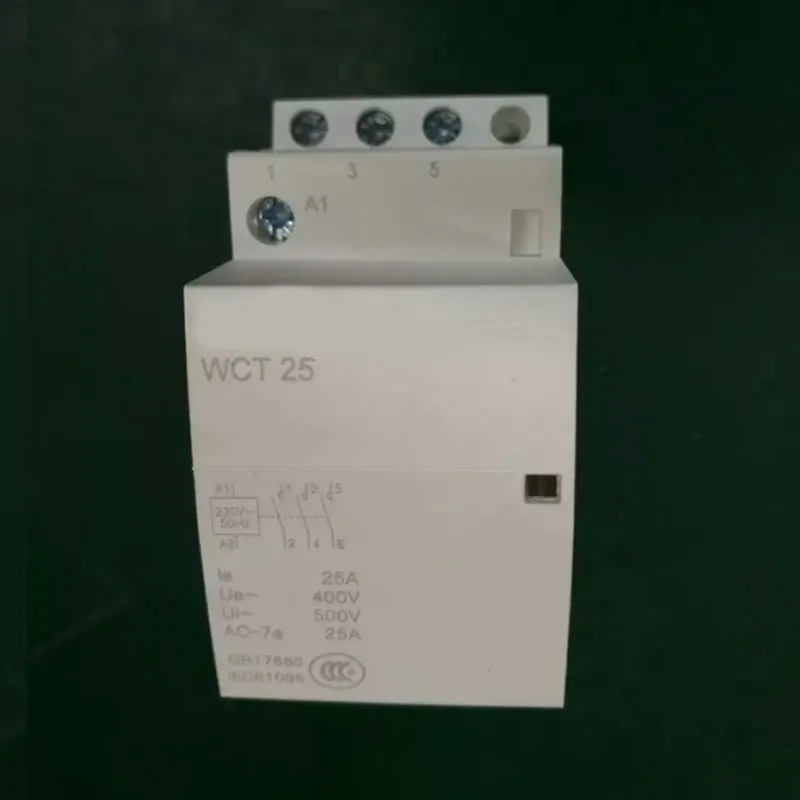

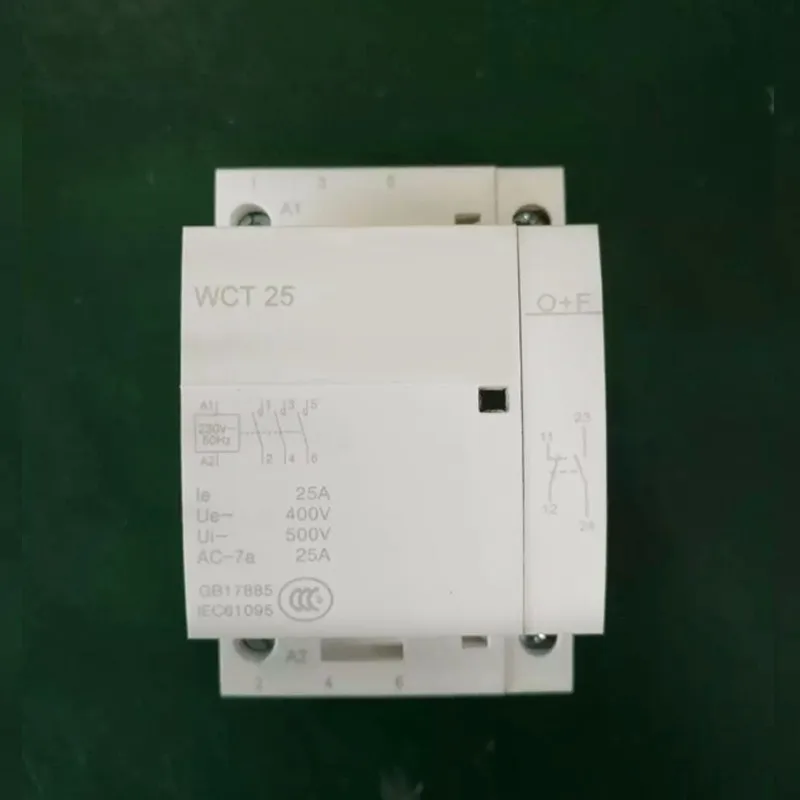

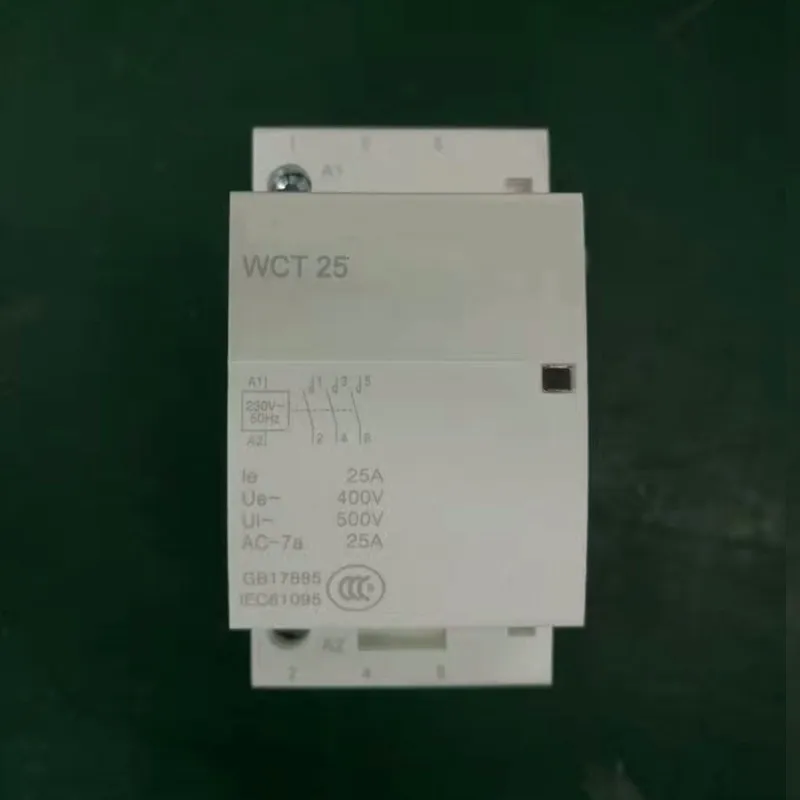

CT series(cjx3) Din Rail Modular contactor

      Modular AC Contactor is suitable for using in the circuits up to the rated voltage 400V AC 50Hz or 60Hz,rated current up to 63A,for making,breaking,frequently starting & controlling the AC moor.Com bin ed with the auxiliary contact block,timer delay & machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter..With the thermal relay,it is combined into the electromagnetic starter.The Contactor is produced according to IEC60947-4,GB14048-4.

       Those Household ac Contactor, module Ac contactor is mainly applicableto a power system of AC 50Hz(or 60Hz) rated working voltage up to 230V with rated working voltageup to 230V and rated working current up to 63A. It is used to remotely make and breakthe line.
       The products are widely used in household buildings, kitchen utensils, shopping malls modulus charging pile, household new energy charging pile small low magnetic induction, hall, hotel, building, water heater, speaker, intelligent home, apartment, office power box , Lighting, heating, ventilation systems, shutter, hot water control, and so on .


Standard control voltage (Ue):20-230V/50/60Hz

Pole number: 2, 4(either as main or auxiliary contacts)

Mechanical endurance: 10 million cycles

Electrical endurance: 1 million cycles

Ambient temperature: -25~+55 degree Celsius

Connection capacity: tunnel terminal for cables up to 25 square millimeters
